Display T24-H3


            This is a centre control panel  with TFT colorful screen with  GUI interface for Ebike drive system,   light sensor is available and system will auto adjust the screen back light , and  power on or off  the light according to ambient intensity; Sillicon button  bring out a nice touch feeling  while operating;

                Those informations such as  Speed , Battery Voltage ,current,  ODO,TRIP,Status of all accessaries etc. can be show on the screen ;

       All the settings related with ebike can be reset for different Drive system to meet different requirements.



    Detailed T24-H3        T24-H3-manual


    Product&Technical Parameters




    ModelT24-H3
    Screen2.4Inc TFT
    Size(mm)75*50*10
    MaterialABS+PC
    Power15-60VDC/10m
    Handlebar for HoldingΦ22.2/Φ25.4/Φ31.8
    CommunicationUART/RS232/CAN
    Weight(g)58


    Connector Specification




    1-RedVB+
     2-BlueKEY
     3-BlackGND
    4-GreenRX
    5-YellowTX

    Test




    IP-CodeIP65

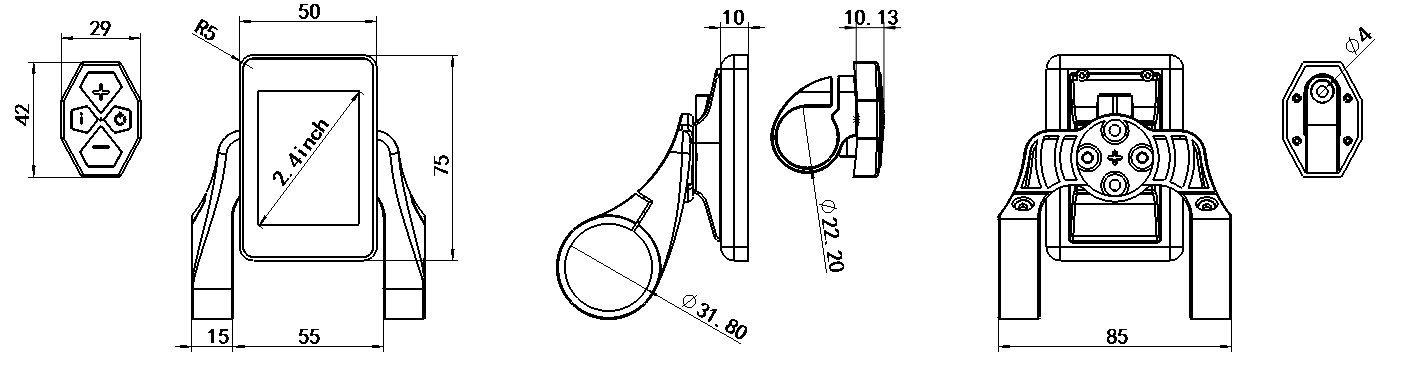

    Structure Size
