MC02B/02C


            This is a high-performance USB charger which       built-in battwery of ebike  , Automatically identify different mobile charger interface include Apple  , quick charging with 1-1.5a continue current.

        Wide input voltage ,multiple protection measures  is valid include Reverse connection protection ,Over-Current protection ,Short-Circuit  protection .



    DetailedDownload


    Product&Technical Parameters




    ModelMC02B/02C
    Size(mm)44*21*10
    MaterialIntensive ABS
    Over heating150℃
    Input7-60VDC
    Output5VDC±0.25
    Max Current1500mm
    Temperature-20℃+60℃


    Model Define

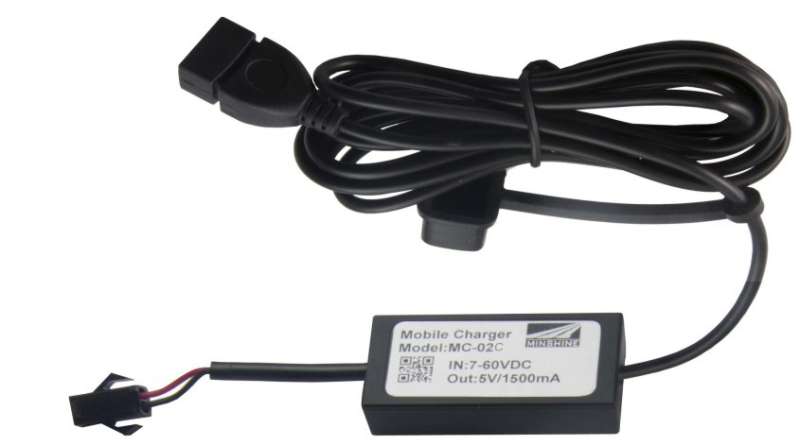

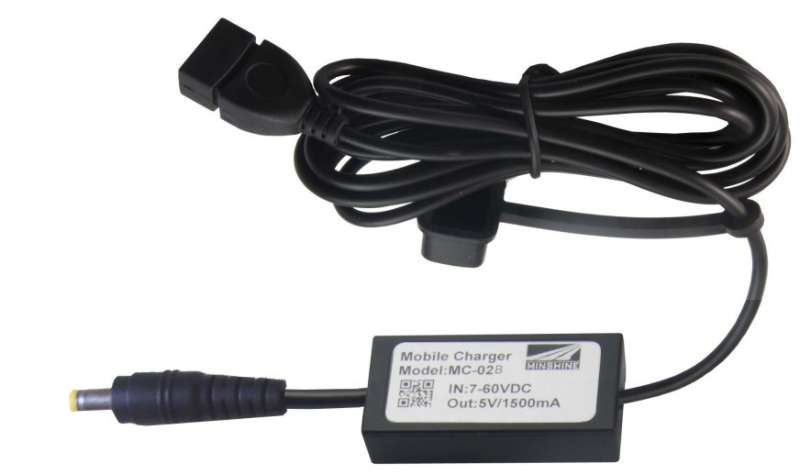

                                                                                                                                                                            (MC02B)                                              (MC02C)




    Test&Certifications




    IP-CodeIP65
    CertifcationsCE /RoHS

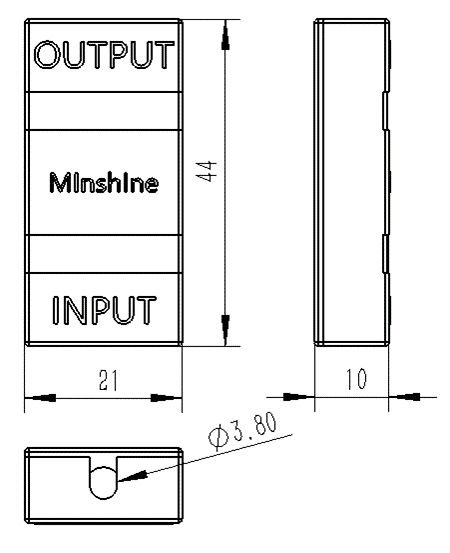

    Structure Size
