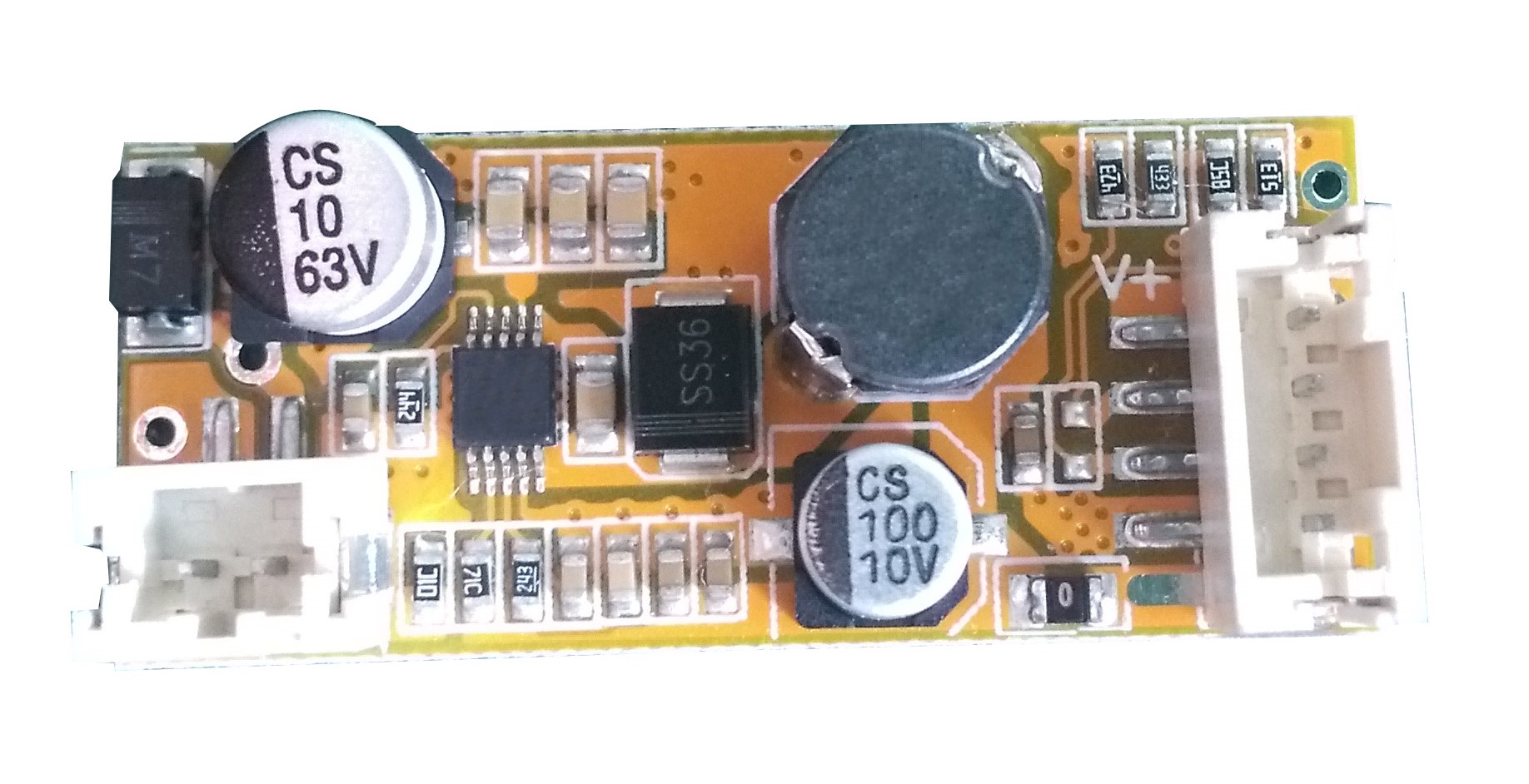

MC01B


          This is a high-performance USB charger which built-in battery of ebike  , Automatically   identify different mobile charger interface include Apple  , quick charging with 1-1.5a continue current ;

          Wide input voltage ,multiple protection measures  is valid include Reverse connection protection ,Over-Current protection ,Short-Circuit  protection  ;



    DetailedDownload


    Product£¦Technical Parameters




    Model3625FG
    Size(mm)39*16*8
    Weight£¨g£©7
    Over heating150¡æ
    Input7-60VDC
    Output5VDC±0.25
    Max Current1500mA
    Temperature-20¡æ+60¡æ


    Connector Specification




    Input
    RedVB+
    BlackVB-
    Output
    RedVCC
    White
    SIG-
    Green
    SIG+
    Black
    GND

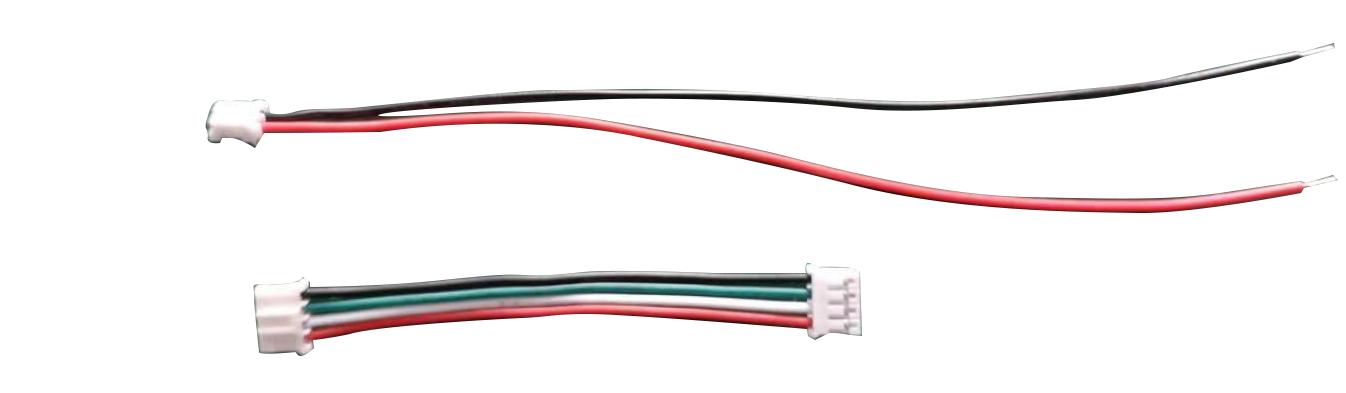

    Connector Length




    Input 2pin cablePH2.0-2Y-L=150mm
    Output 4pin cablePH2.0-2Y-L=70mm

    Structure Size
