Double Battery Balance Discharger




       Double Battery Balance Discharger can manage two battery packs which fixed on your bike, low power  Consumption design ,real-time detect the voltage of both two battery packs, Battery on-line check .  This module can make both two batteries to discharge together to power the ebike , it will auto compare the voltage of each battery and adjust the current output for each battery , the current output for each battery will be same if the voltage of each battery is same .          Module will stop power output when voltage low than low-cut voltage to protect the battery.


    DetailedDouble Battery Pack Blance Disharger        DBB


    Product&Technical Parameters




    ModelDBB-60XX
    Shell Size(mm)A*B*C
    Housing MaterialAluminum
    Input Voltage15-60VDC
    Quiescent Current2mA

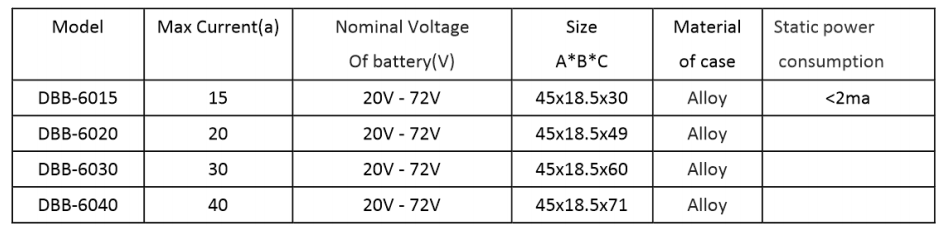

    Model Define






    Test&Certifications




    IP-CodeIP65
    CertificationsCE /RoHS

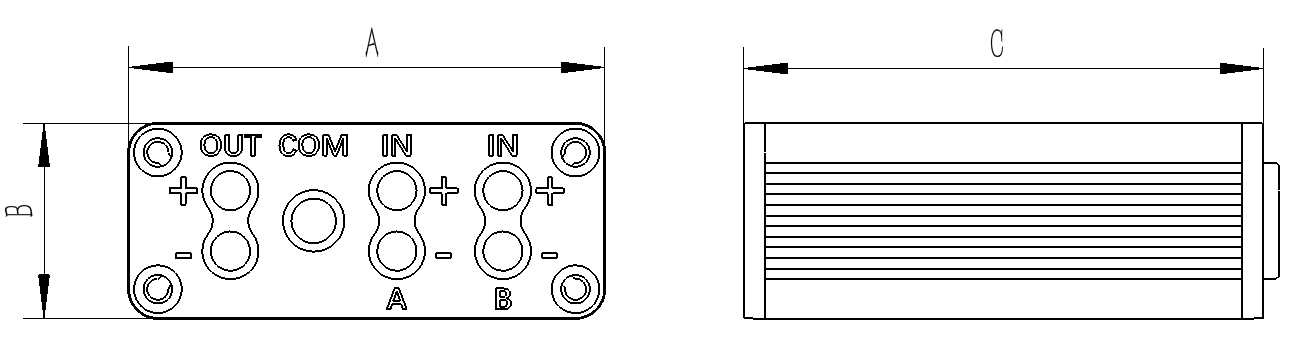

    Structure Size
