Break Sensor


           This is new in-line brake sensor,   the main features is ,it has a gap on the sensor therefor brake cable can be easily put inside the sensor , the brake signal come out from sensor  when brake cable moving .


    DetailedDownload


    Product&Technical Parameters




    ModelBK-ES
    TypeBreak Sensor
    Size(mm)29*16*12
    MaterialIntensive ABS
    Max load Voltage175VDC
    Max Operating Current1A
    Magent BobyCopper
    Weight(g)4.6


    Connector Specification




    RedVCC
    WhiteSIG
    BlackGND

    Test&Certifications




    IP-CodeIP65
    CertificationsCE /RoHS

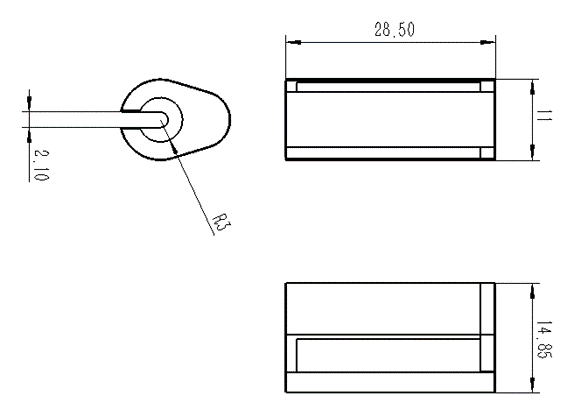

    Structure Size
