PAS Sensor




         This is a newest  high precision PAS sensor ,it can be easily fixed on left  (PAS-12L) or right (PAS-12R)  side of bottom brackets .automatic direction and signals will come out pedal forward;


    DetailedDownload


    Product&Technical Parameters




    ModelPAS12L/R
    TypePAS Sensor
    Size(mm)Φ44*6.5
    MaterialIntensive ABS
    Power5V/2mA
    Signal12Pules Per Circle
    Axel Size(mm)Φ15-15.8
    Weight(g)7.8克


    Connector Specification




    RedVCC
    WhiteSIG
    BlackGND

    Test&Certifications




    IP-CodeIP65
    CertificationsCE /RoHS

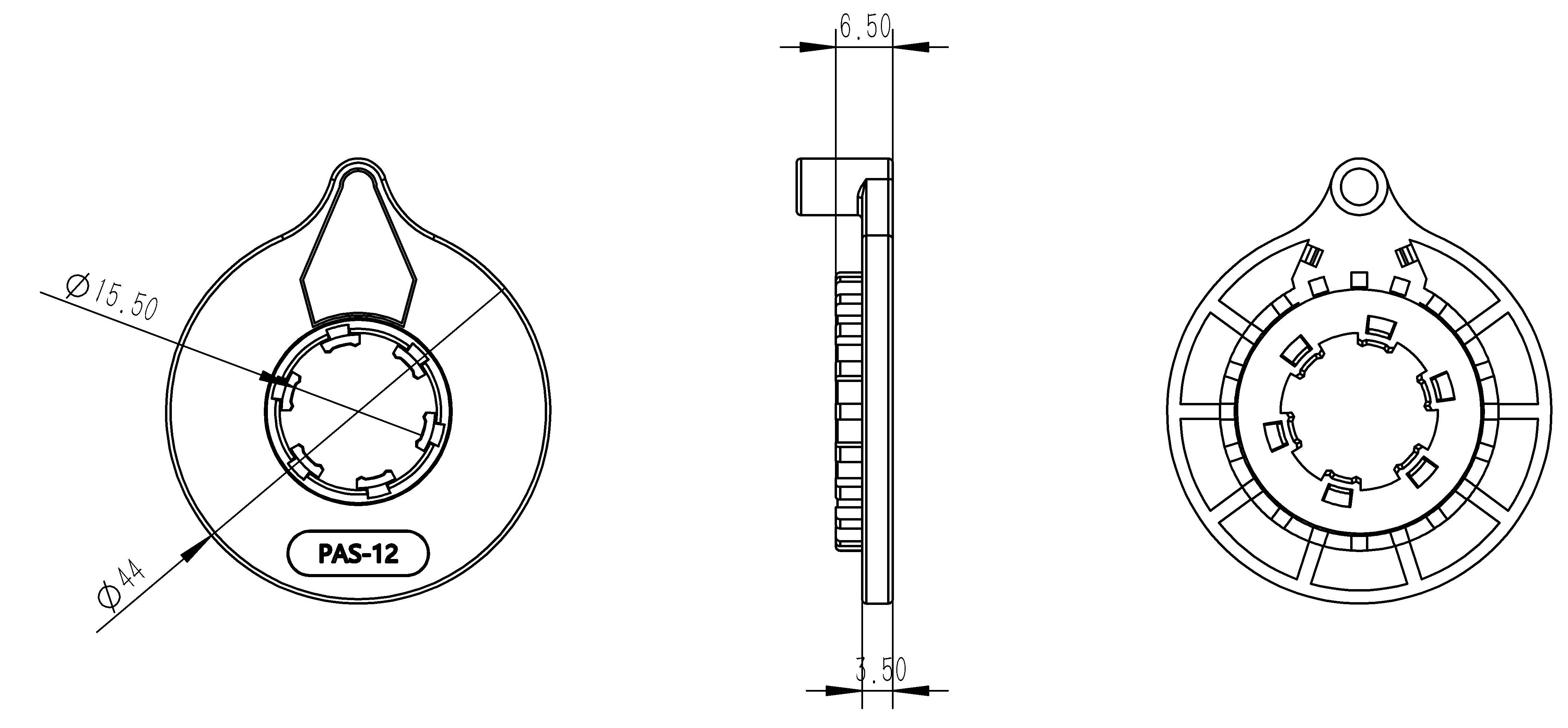

    Structure Size
