Speed Sensor




            This is a speed sensor for bike ,well design , ,smaller size ,easily install; electric puless  come out from  sensor  and indicator on sensor will blink  while  wheel rotating ,bike control system measure the bike speed accruately according to this signal .



    DetailedDownload


    Product&Technical Parameters




    ModelSPS-1
    TypeSpeed Sensor

    Size(mm)

    38.5*14*15.5
    MaterialIntensive ABS
    Power5V
    SignalPules
    Magnetic bobyCopper
    Weight(g)12.8


    Connector Specification




    RedVCC
    WhiteSIG
    BlackGND

    Test&Certification




    IP-CodeIP65
    CertificationsCE /RoHS

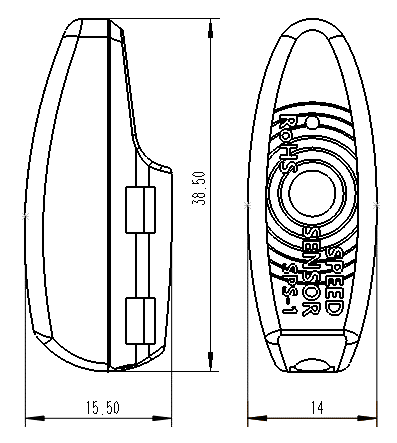

    Structure Size
