DC-DC Converter




         Usually, battery voltage on ebike is 24/36/48V, but  some electric applications like LED light or others need  5v or 6v supplier power  , This converter is a good solution for it. it can convert sorurce voltage(7-60v) to 5v or 6v or others special outpt voltage.

         The main features of this converter is small and exquisite , wide source entering ,high  conversion efficiency ; Reverse connection protection ,Over-  Current protection ,Short-Circuit  protection.



    DetailedDownload


    Product&Technical Parameters




    ModelMCDCxxxxxx
    Shell Size(mm)44*21*10
    PCB Size(mm)21*10*3.5
    Housing MaterialIntensive ABS
    Input7-60VDC
    Output24V/36V/48V
    Max Current2000mA
    Temperature-20℃+60℃


    Model Define






    Test&Certifications




    IP-CodeIP65
    CertificationsCE /RoHS

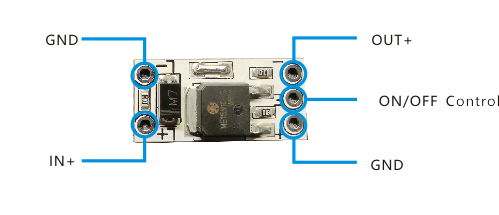

    Structure Size
