DC-DC Converter 3625

         Usually, battery voltage on ebike is 24/36/48V, but  some electric applications like LED light or others need  5v or 6v supplier power  , This converter is a good solution for it. it can convert sorurce voltage(10-60v) to 5v or 6v or others special outpt voltage.

         The main features of this converter is  small and exquisite , wide source entering ,high  conversion efficiency ; Reverse connection protection ,Over-Current protection ,Short-Circuit  protection



    DetailedDownload


    Product&Technical Parameters




    ModelMS-07S
    Product type3625P
    Shell Size(mm)48*22*12
    Housing MaterialAluminum
    Input7-60VDC
    Output5VDC±0.25
    Max Current2000mA


    Harness description




    Redv+
    Blackv-

    Test




    IP-CodeIP65

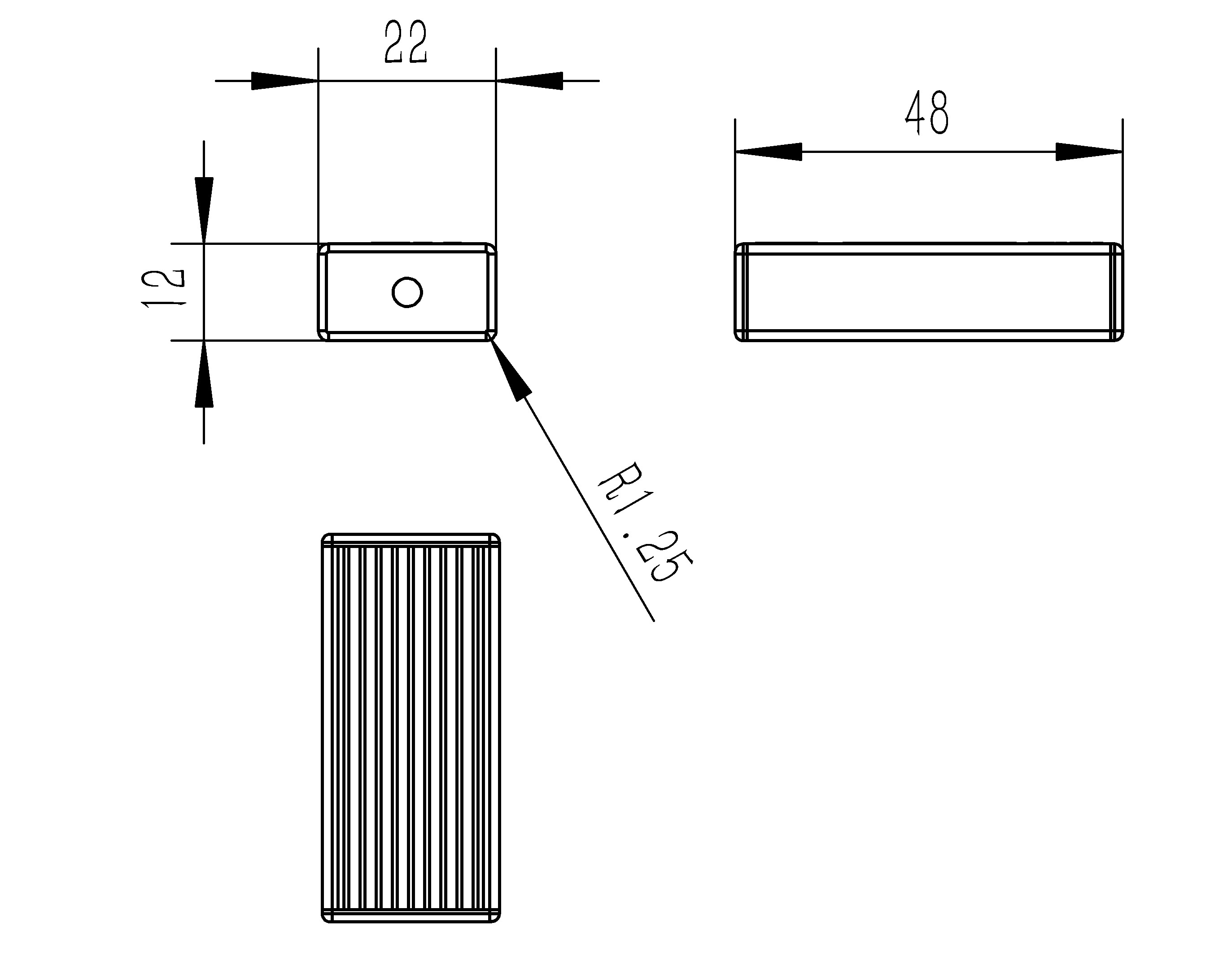

    Structure Size



    装配体20-06-30 (2).JPG
