Controller


           This is a ebike controller which can drive the wide range of BLDC motors ,with square wave mode or  FOC mode ,  low power consumption design, smooth current flow technology, Auto motor position correct  ,auto bike speed trace ,  make the motor running more smooth with low nosie;

           Change the settings with our special debug APP  for different brand BLDC  motor, different battery , different ride mode , different requirements ; more convenient and more helpful for some advance customers to make a special drive system by themselves;



    DetailedDownload


    Product&Technical Parameters




    ModelS-XX XX XX-XXX-X
    TypeConntroller
    Size(mm)86*31*52
    MaterialAluminum
    Voltage24-72V
    Current10-50A
    CommunicationUART/RS232/CAN
    Weight(g)225

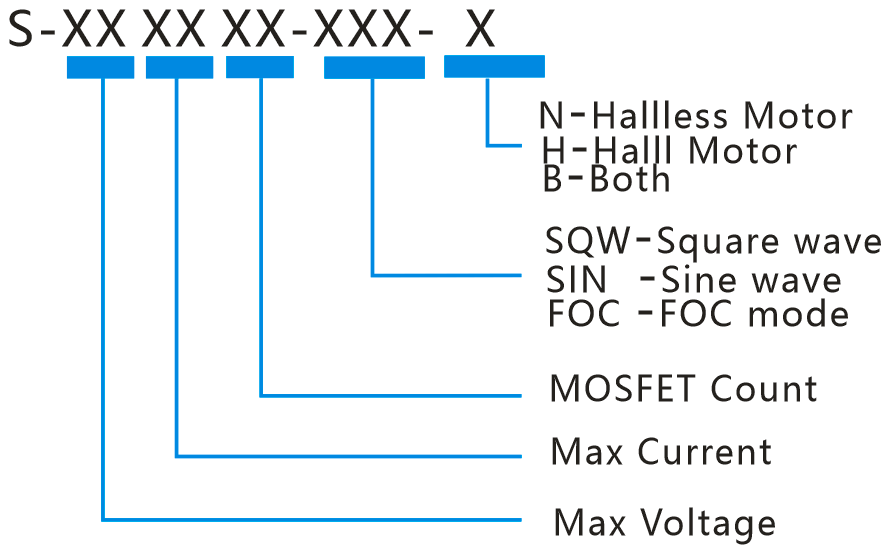

    Model Define







    Test&Certifcations




    IP-CodeIP65
    CertificationsCE /RoHS

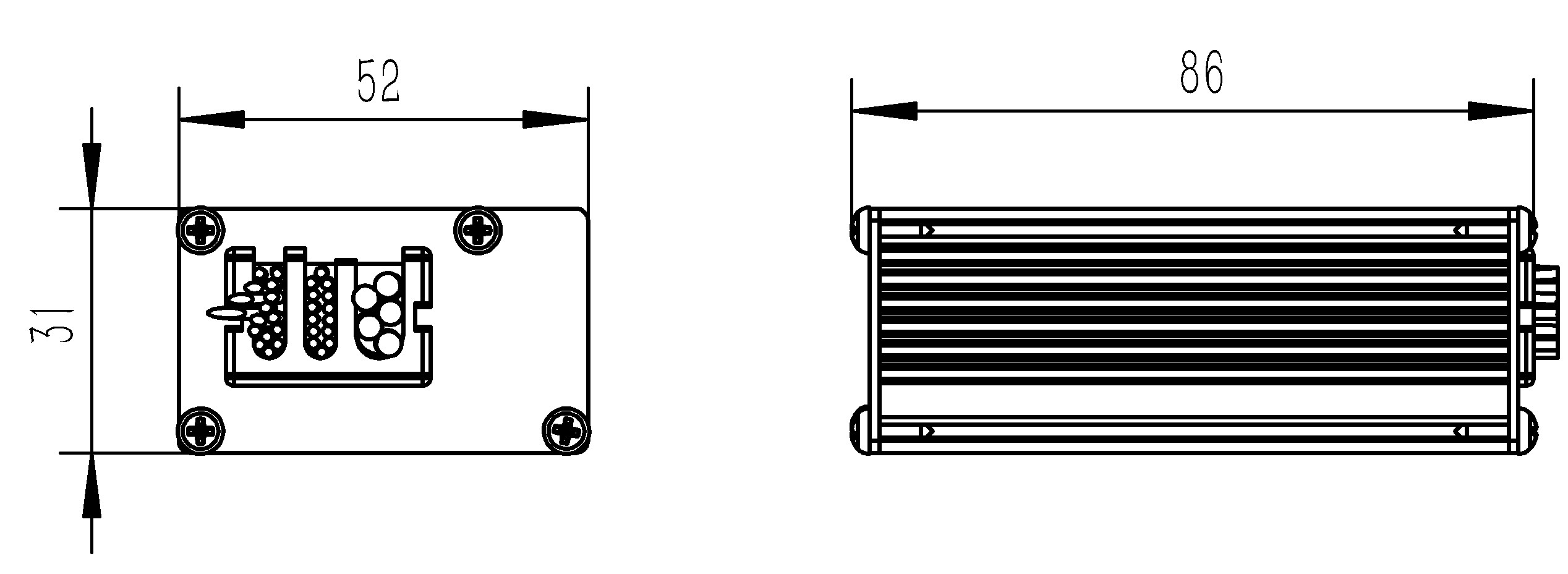

    Structure Size
