Break Sensor BK-1F/1R


            This  is an in-line brake sensor patented by      Minshine, brake cable go through the sensor , the brake signal come out from sensor immediately when the brake cable moving , system can cut-off the power after got this signal .

    The main features of this sensor is small size ,stable and reliable working ,also can  be easily fixed  at  any position t of brake cable.



    DetailedDownload


    Product&Technical Parameters




    ModelBK-1F/1R
    TypeBreak Sensor
    Size(mm)36*16*12
    MaterialPPS
    Power5V/2mA
    SignalActive:0v/InActive:5v
    Break Cable Size(mm)Φ1.5-1.8
    Weight(g)6.8


    Connector Specification




    RedVCC
    WhiteSIG
    BlackGND

    Test&Certifications




    IP-CodeIP65
    CertificationsCE /RoHS

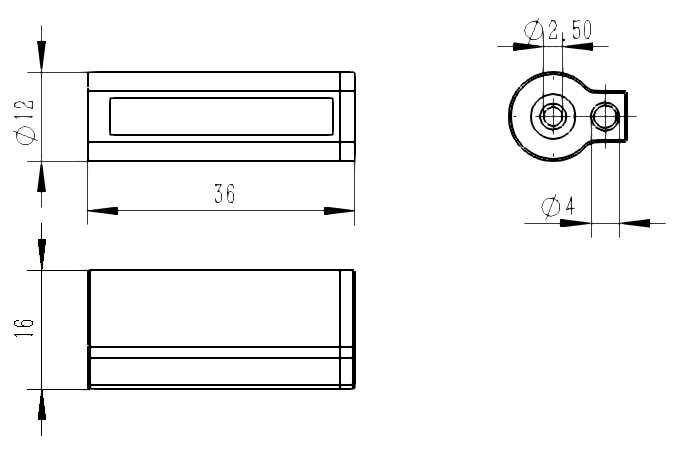

    Structure Size
