PAS Sensor PAS-D12




         This is  an Integrated sensor, it can be fixed at left  or right side of bottom brackets Automatic moving direction detect , so this sensor can check the moving direction while pedaling , sending out signal  when forward and stop sending  when backwards. There have a indicator on sensor ,  it can help user to check the sensor is working or not . Or check the installation is correct or not.


    DetailedDownload


    Product&Technical Parameters




    ModelPASD12
    TypePAS Sensor
    Sensor Size(mm)Φ45*9.5

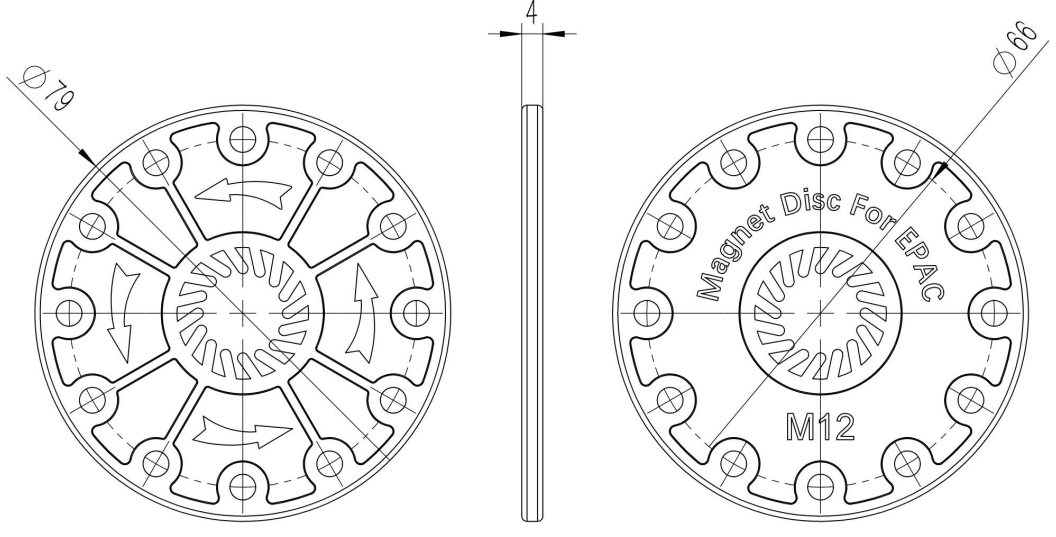

    Disk Size(mm)Φ79*4
    Power5V/2mA
    Signal12Pules Per Circle
    Axel Size(mm)Φ15-15.8
    Material
    PA+PPS


    Connector Specification




    RedVCC
    WhiteSIG
    BlackGND

    Test&Certifications




    IP-CodeIP65
    CertificationsCE /RoHS

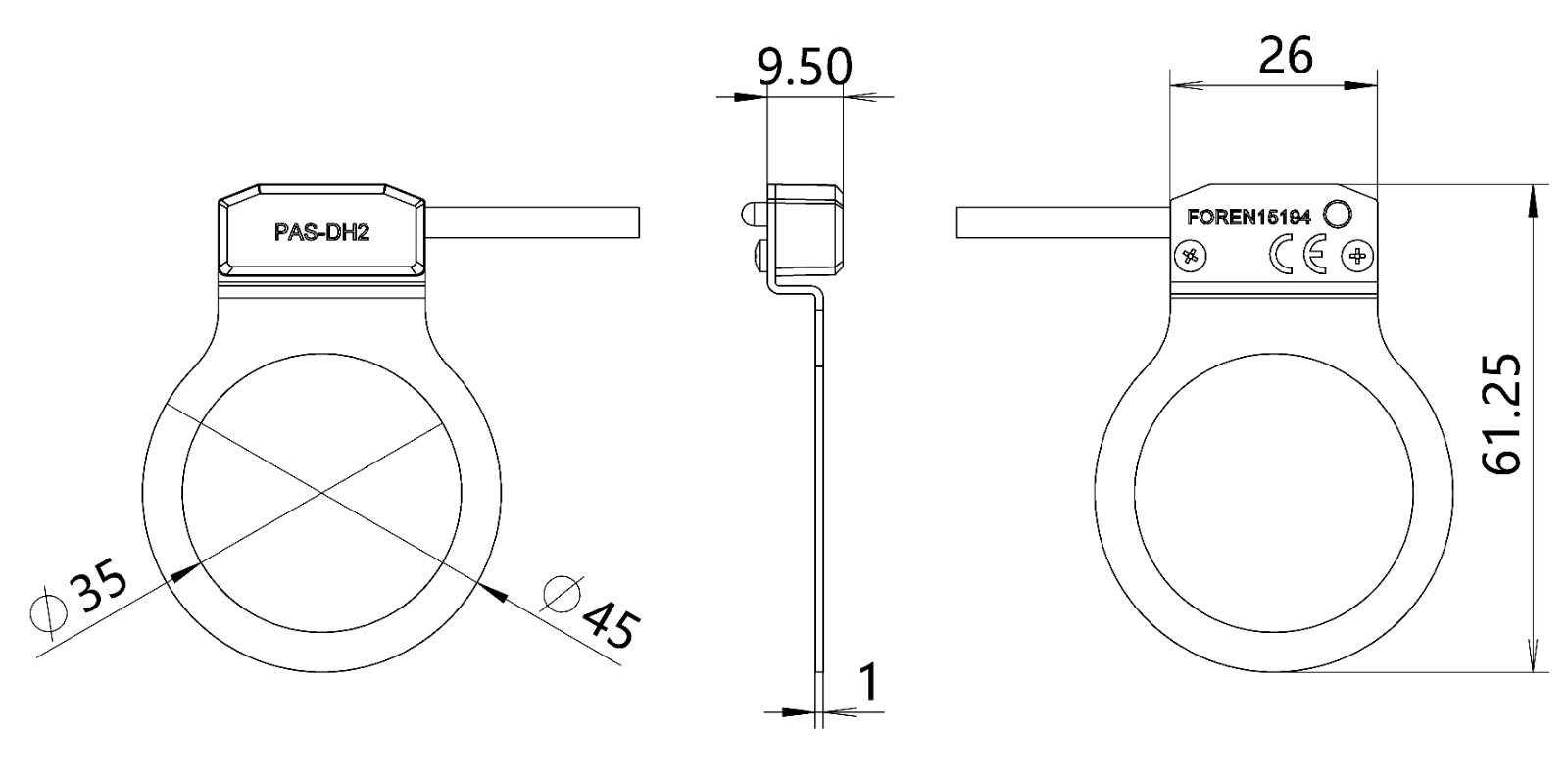

    Structure Size
