PAS Sensor PAS-DH12




         PAS-DH12 is a pedal assist sensor for bike, it was combined with 3 parts ,   a disc with 12 magnet , a sensor , and a Holding ring,  do not need any tools to fix this sensor  on bike , so installation  will be more easily , it was widely used for ebike convertion kits .

          Automatic moving direction detect , so this sensor can check the moving direction while pedaling , sending out signal  when forward and stop sending  when backwards.

           There have a indicator on sensor ,  it can help user to check the sensor is working or not .


    DetailedDownload


    Product&Technical Parameters




    ModelPASDH12
    TypePAS Sensor
    Sensor Size(mm)47.8*13.2*11.7
    Disk Size(mm)Φ83*5.5
    Power5V/2mA
    Signal12Pules Per Circle
    Axel Size(mm)Φ15-15.8
    MaterialIntensive ABS


    Connector Specification




    RedVCC
    WhiteSIG
    BlackGND

    Test&Certifications




    IP-CodeIP65
    CertificationsCE /RoHS

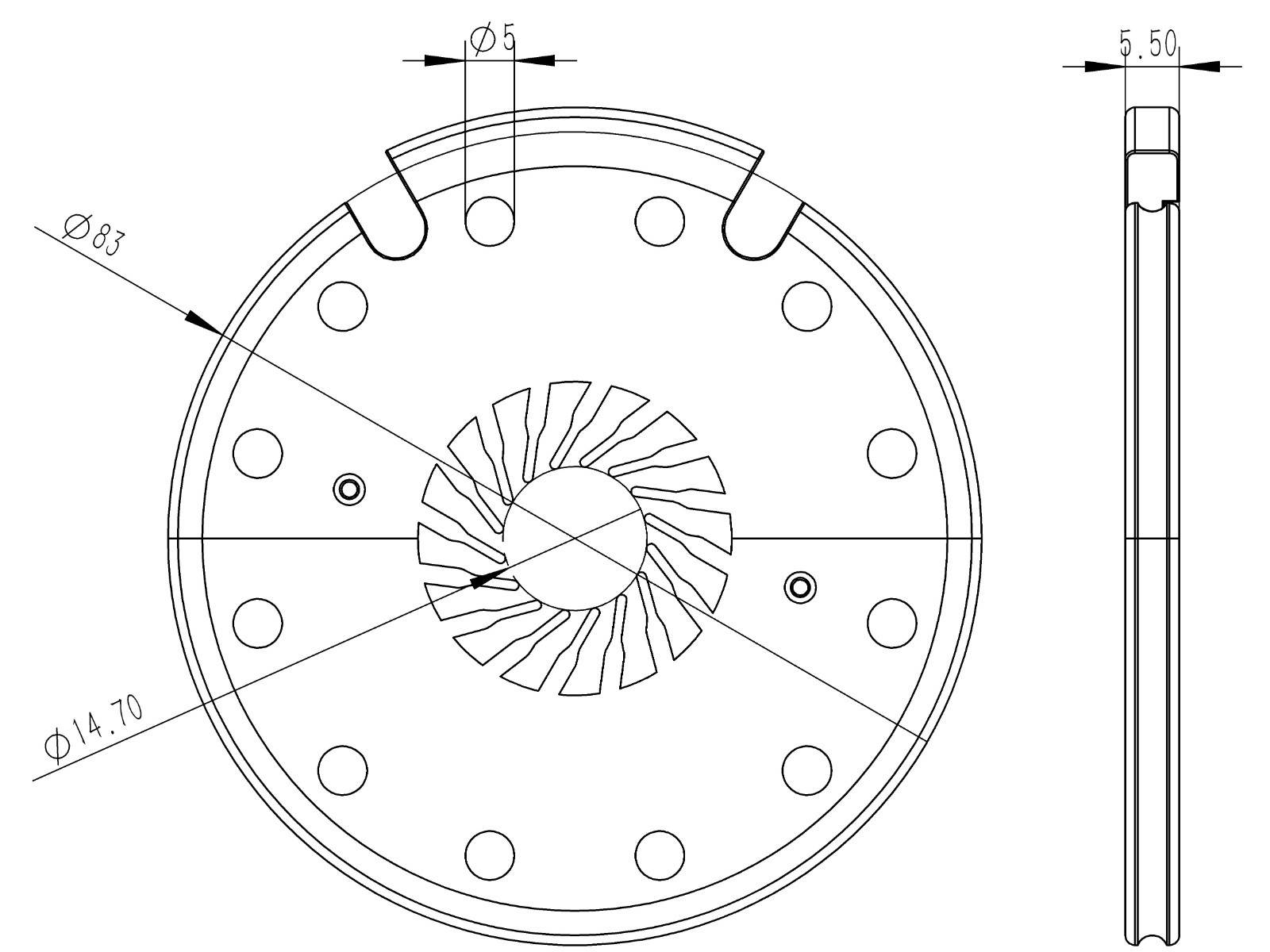

    Structure Size




    PAS-DH12分体盘 (2).JPG
