Shift Sensor SS03




           Chain or gear will be broken easily at Mid-motor drive system if system can not cut power on time during gear-changing process .

           Newest In-Line Shift sensor can solve that problem properly, this sensor can be fixed on derailleur cable ,a signal will transfer to system from sensor at gear-changing process , control system cut-off the power according to this signal , the main feature is smaller size ,easily to fix, high sensitivity.


    DetailedDownload


    Product&Technical Parameters




    ModelSS-03
    TypeShift Sensor
    Size(mm)44.7*18.5*11.8
     MaterialIntensive ABS
    POWER5V/1mA
    SignalPulse
    ProtectionShort Circuit


    Connector Specification




    RedVCC
    WhiteSIG
    BlackGND

    Test




    IP-CodeIP65

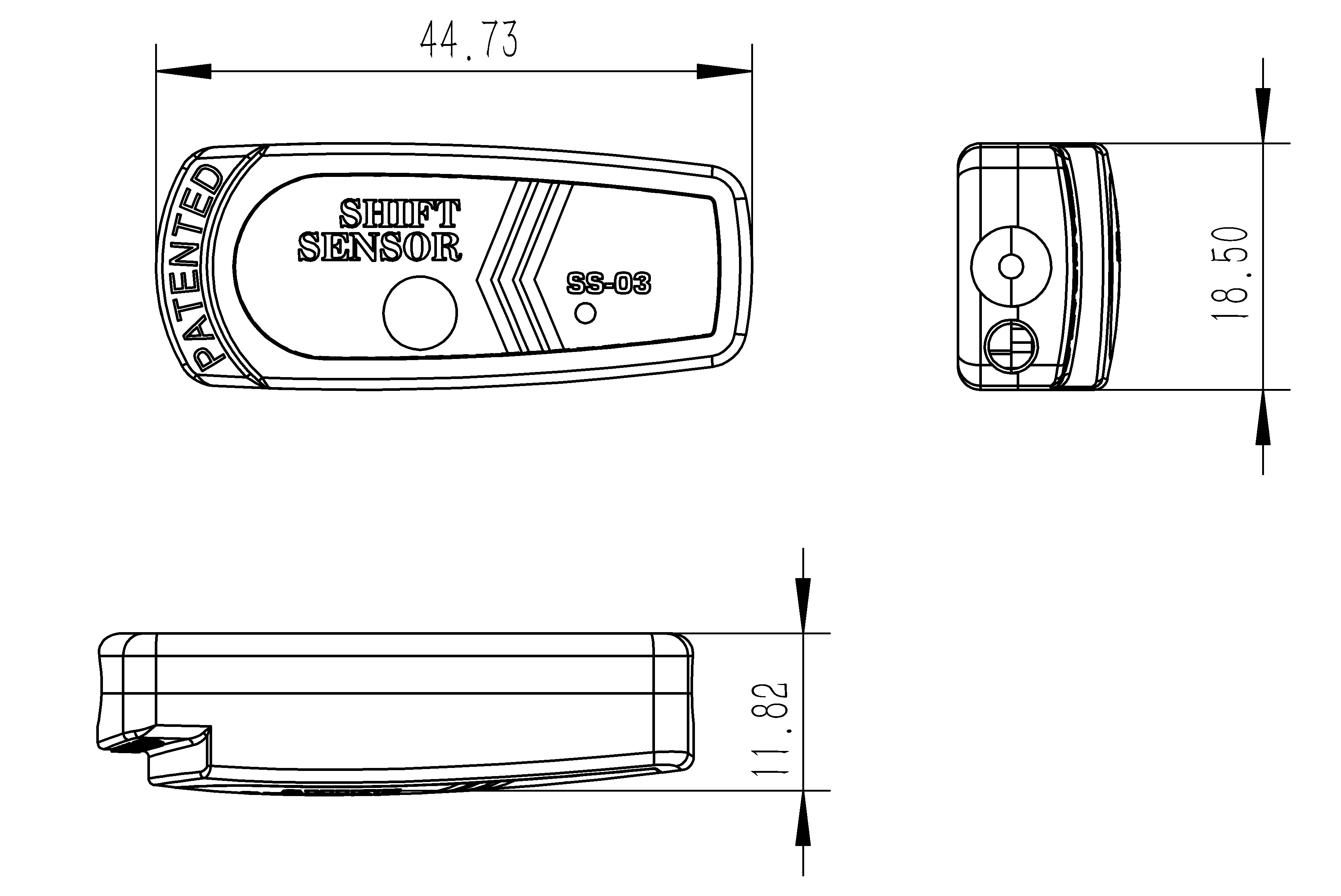

    Structure Size



    ss-03 (2).JPG
