Display E100


        This is a LED display for ebike system , you can change level to control the bike by this display, And you can check the battery capacity and level status by it , this is simple solution for ebike system.


    DetailedE100-Manual        E100


    Product&Technical Parameters




    ModelE100
    ScreenLED
    Display ColorRed
    Power24-60VDC/10mA
    CommunicationUART/RS232/CAN
    Housing materialABS


    Connector Specification




    Size64.2*45.3*10mm
    Holder clampØ22.2

    Test&Certifications




    IP-CodeIP65
    CertificationsCE /RoHS

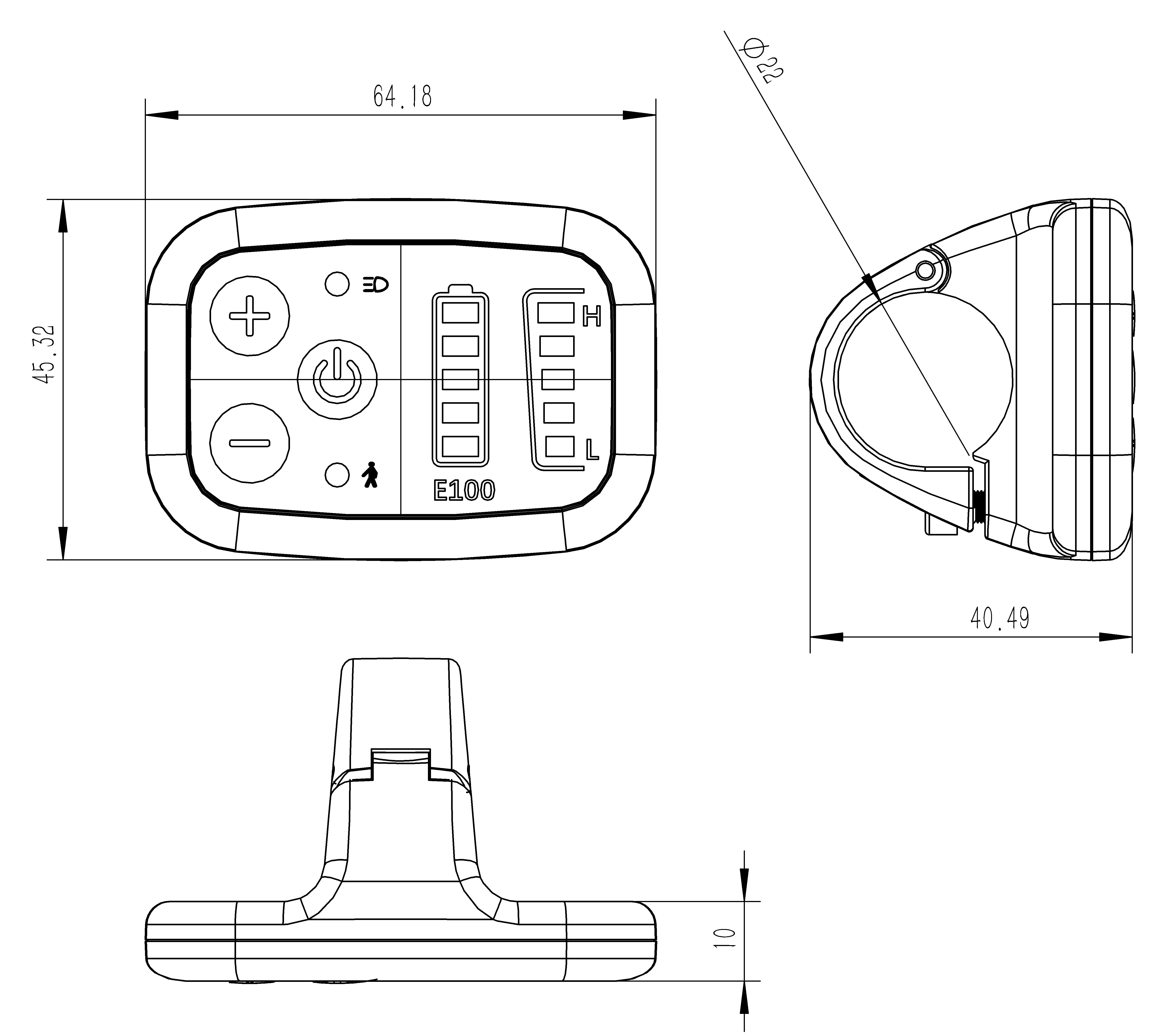

    Structure Size
