Display M15


        This is a centre control panel  with a TFT colorful screen for ebike drive system ,  transparent silicon rubber button with LED back-light, GUI interface ,digital communicating interface . 3 font color solution and 3 colorful skins are presented, a built-in light sensor  and auto adjust the screen back light , and  power on or off  the light according to ambient intensity;

         Those informations such as  Speed , Battery Voltage ,Current,  ODO,TRIP,Status of  accessaries etc. can be show on the screen with different color ;

         Plenty setting menu items are available for users to set the parameters for different.


    DetailedM15


    Product&Technical Parameters




    ModelM15
    Voltage24V/36V/48V
    Screen Size1.54inch TFT
    Power15-60VDC/10mA
    CommunicationUART/RS232/CAN
    Housing materialABS


    Connector Specification




    Size62.2*44.5*10.5mm
    Holder clampØ22.2

    Test&Certifications




    IP-CodeIP65
    CertificationsCE /RoHS

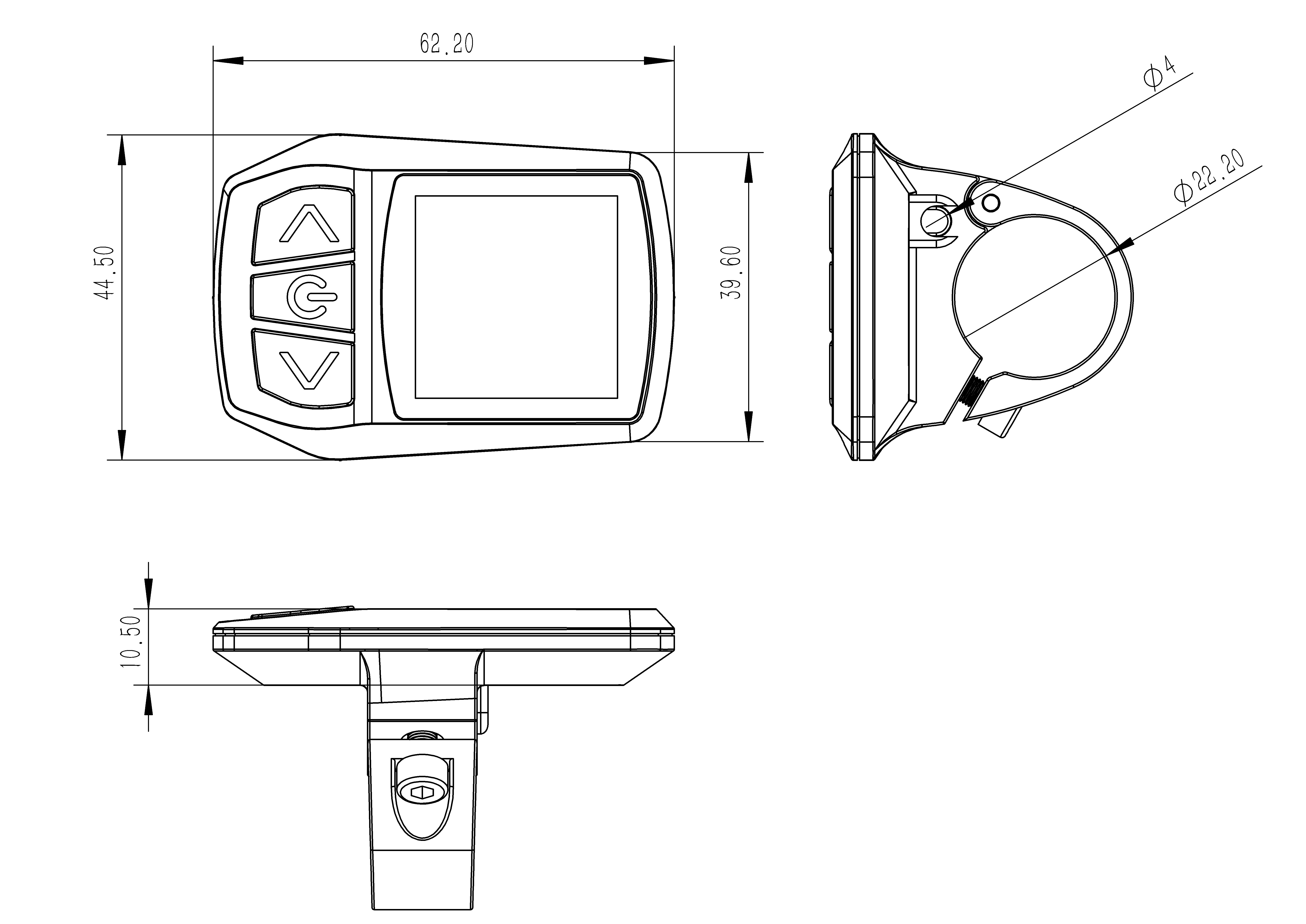

    Structure Size
