Our Products

XMK Torque Sensor

      XMKTorque sensor is a newest patented product, Torque sensor built-in motor , Accurate measurement the force of pedal ,stable performance.



Features:

  • New patented product
  • Built-in part of motor
  • Measurement accuracy
  • Easy installation
  • Stable performance
  • Dustproof
  • Waterproof

Technology Parameters:

 Torque Sensor
 Torque Rang  0 - 19Nm  Power Supply  5 - 10 VDC
 Signal Output  1.2 - 3.2VDC  Speed Signal Output  12 inpulses / rotation
 Motor
 Rated Voltage  24/36/48VDC

 Drive and Freewheel Type

 5s - 7s
 Rated Power  180 - 350  Spoke Specification  shaft center right
 Max Speed(rmp)  180 - 370  Hall Sensor  optional
 Rated Efficiency  >= 80%  Weight(kg)  3.5
 Open Size  135  Break Type  disk/v break



eBike Kit

Based on the torque sensor, Our E-Bike Kit is the perfect choice of bike modification, The eBike kit is a complete conversion kit that empowers you to easily convert your own conventional bike into a battery-powered electric bicycle.








Parts

MS-KIT-F Serial

Front Kits

MS-KIT-R Serial

Rear Kits

MS-KIT-T Serial

Rear Torque sensor Kits

BLDC Motor

24V/36V 250W-500w

24V/36V 250W-500w

24V/36V 250W-500w

XMK Torque Sensor

/

/

XMKBuilt-in motor torque sensor

Controller

Sine wave controller

Sine wave controller

Sine wave controller

Display

Led /Lcd

Led /Lcd

Led /Lcd

PAS sensor

 Yes

 yes

 Yes

Throttle

 Yes

yes

Yes

Break

 Yes

yes

Yes

Rim

Aluminum double wall Wheel

20”/24”/26”/700C/28”

Aluminum double wall Whee

20”/24”/26”/700C/28l

Aluminum double wall Wheel

20”/24”/26”/700C/28

Spokes

stanless

stanless

stanless

Battery

Lithium 24V/36V

8AH-11.6AH

Lithium 24V/36V

8AH-11.6AH

 Lithium 24V/36V

8AH-11.6AH

Spokes

Stainless

Stainless

Stainless

Weight

4.5Kg(not include battery)

4.6Kg(not include battery)

4.6Kg(not include battery)

Package Size

60cm*60cm*25cm

60cm*60cm*25cm

60cm*60cm*25cm

Is Customized

Yes

yes

yes

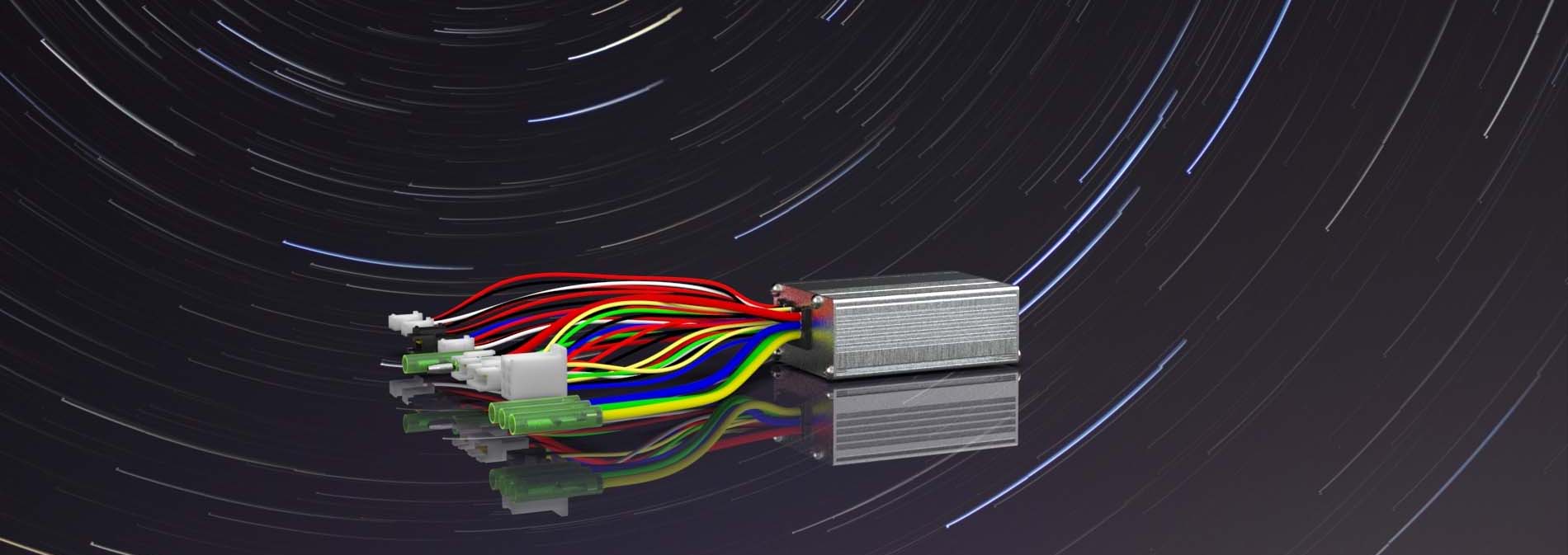

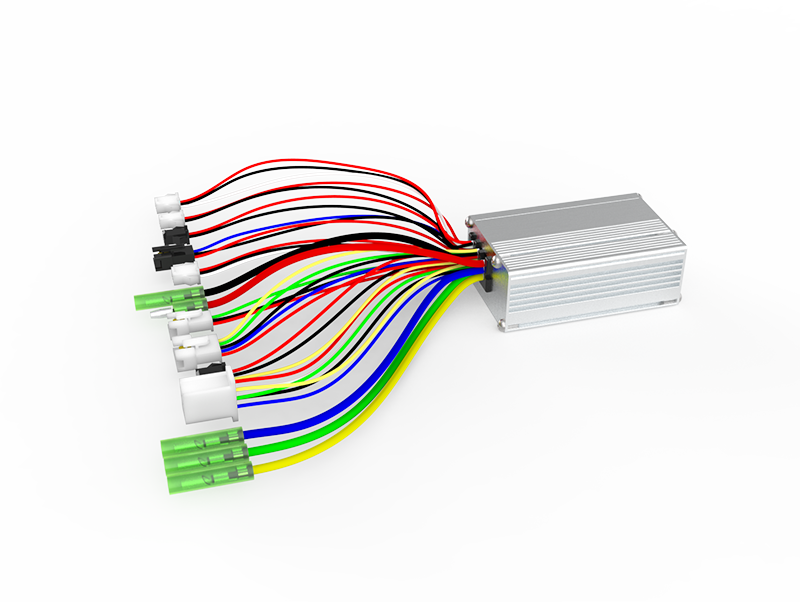

eBike Controllers

MS series controllers are suitable for  all kinds of high or low speed motor. It adopts microcomputer chip control and has the features of  intelligent phase discrimination, high efficiency, waterproof, dustproof, high reliability and so on.

Functions:

1. Current-Limiting

2. Limit speed function

3. Brake

4. Anti-slide function

5. Reversing function

6. Blocking protection function

7. Self-test function of protection



MS serials sine wave controller

This kind of controller adopts sine wave control method so that it not only makes bicycle running smoothly, reduces the motor operating noise,  increases torque motor of low speed, but also improves motor efficiency and increases bicycle mileage of continued lines.

Features:

1. Sine wave control method.

2. The unique current control algorithm.

3. Suitable for any brushless motors of e-bike.

4. Automatically applicable to both of the 60 degree and 120  degree motors.

5. Automatically detect the motor phase angle, holl phase and output phase of electric bike.

6. Dynamic inspection. Once any part fails, the controller automatically takes protection and fully ensure the safety of riding.

7. Automatically detects the states of motor overcurrent or stalling and controls current automatically.

8. Once any phase of electric bike motor fails, the controller takes protection.

9. Anti-speed function improves the security of the system.



Rated Volteage Limit output current(A) Max. output current(A) Limit output power(W) case size Power tube number
24v 6 12 144  89*52*31 6
7 15 168
10 20 240  130*66*39  9
12 25 288
15 30 360  175*66*39 12
17 35 408  175*82*41 12
20 40 480
36v 6 12 216  89*52*31
7 15 252
10 20 360  130*66*39
12 25 432
15 30 540  175*66*39 12
17 35 612  175*82*41 12
20 40 720
48v 6 12 288  89*52*31
7 15 336
10 20 480  130*66*39 9
12 25 576
15 30 720  175*66*39 12
17 35 816  175*82*41 12
20 40 960

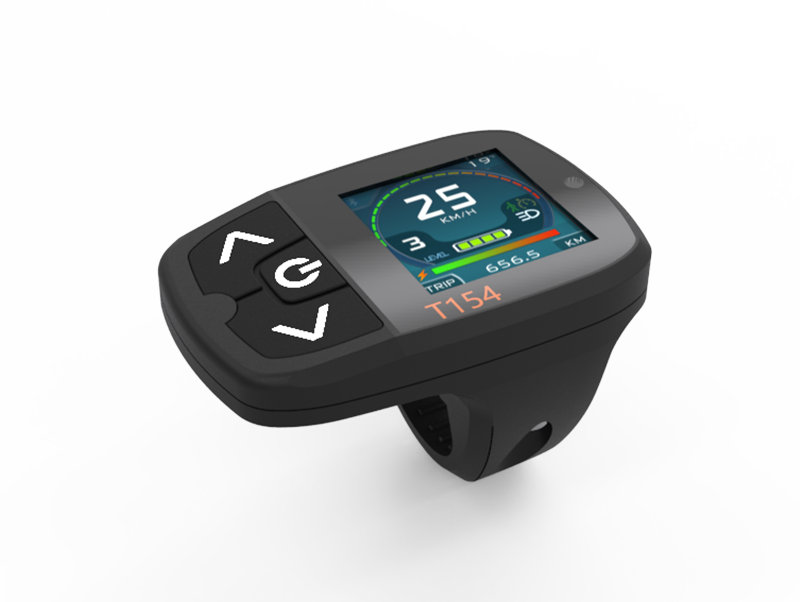

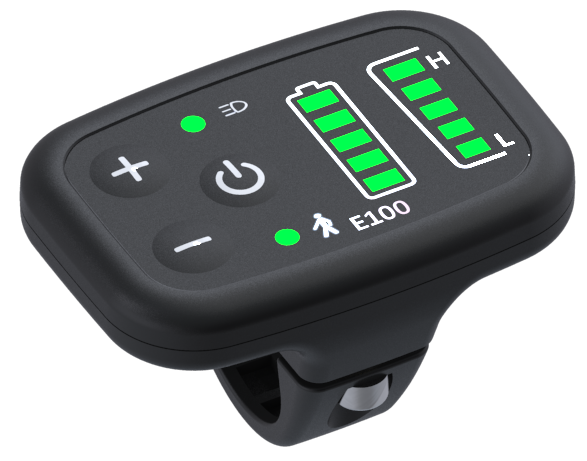

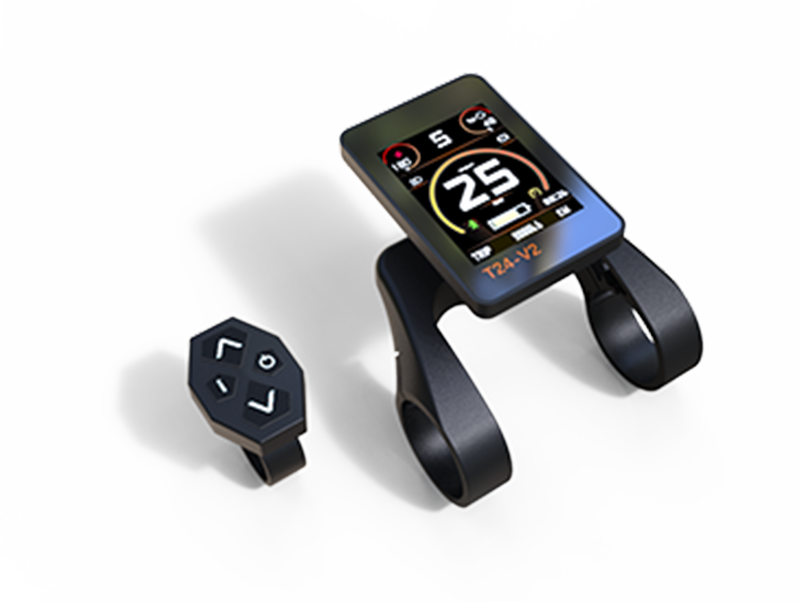

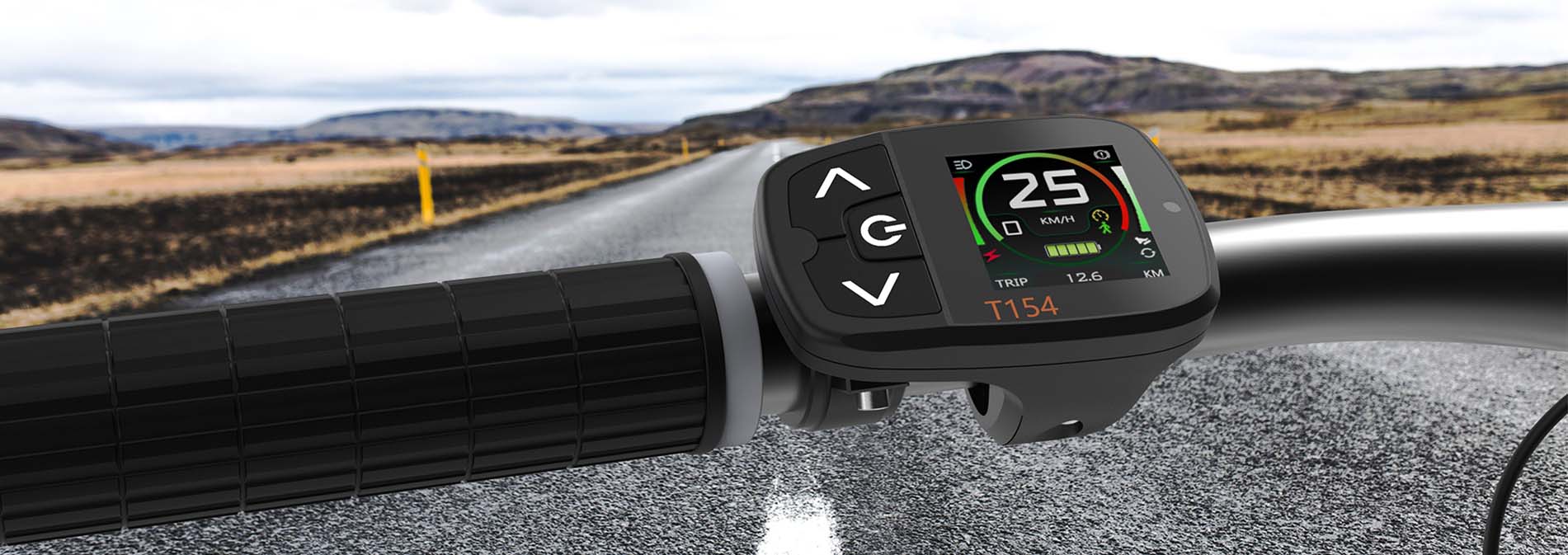

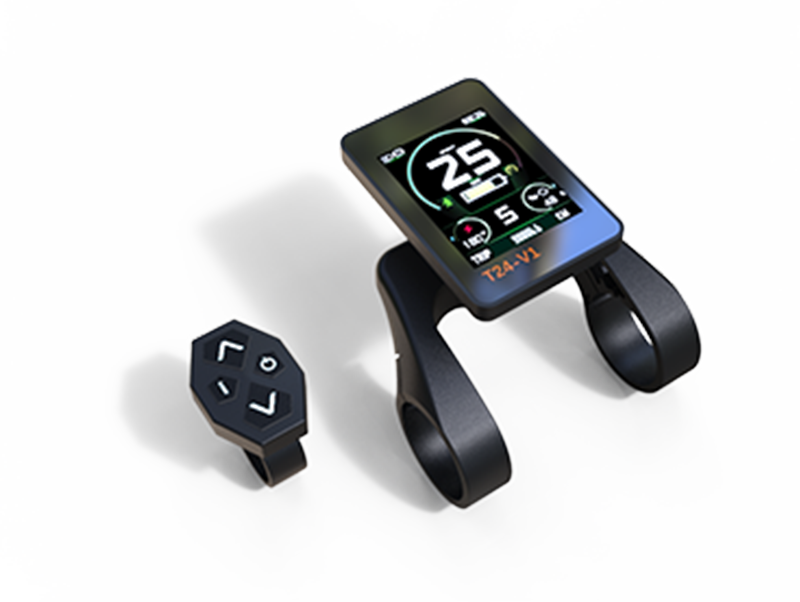

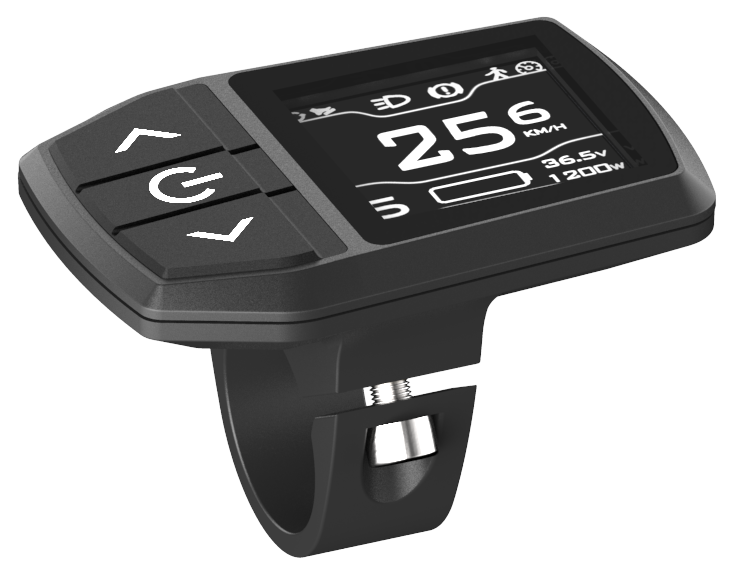

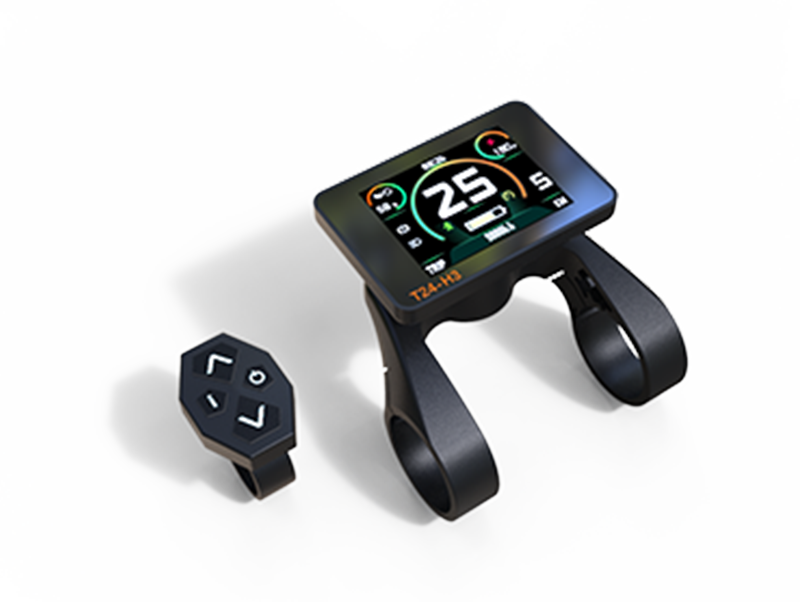

eBike Display

The MLCD series meters are used for the top grade display and control meters of electric bicycles. They have the features of intelligent display, powerful functions, simple operation, easy installation, strong waterproof and so on.





Features:

1. LCD or LED。

2. Display functions: display speed, mileage, single stage mileage, power shift and so on.

3. Intelligent battery: display real electric quantity of battery, record electricity consumption in real-time.





eBike Brake Sensor


  Newest  brake sensor which can detect brake operate . Small size and High performance,  Easy to install, Fit on anywhere of bike brake cable, unneeded  to change  bicycles brake when you  convert  bike to eBike



Technical Parameters

Voltage:        5V – 24V

Current:        10mA

Output Current:  Max -20mA @On

Suit Brake Cable:  1.5mm-1.8mm

Indicator:        LED

Size(L*W*H):     36mm*12mm*16mm

Cable Type:      3pin

Cable Length:    400mm Or Customize

eBike accessories

Watrerproof Cable Collect box, 6V DC-DC Led lights power, PAS sensor,Speed sensor , Lithium Battery. ,Brake ,Thtrottle

Watrerproof Cable Collect box

Low cost  cable collect solution of  Ebike, all of the cable connecter as SM5,SM3,SM2  can esaily fit in the box.

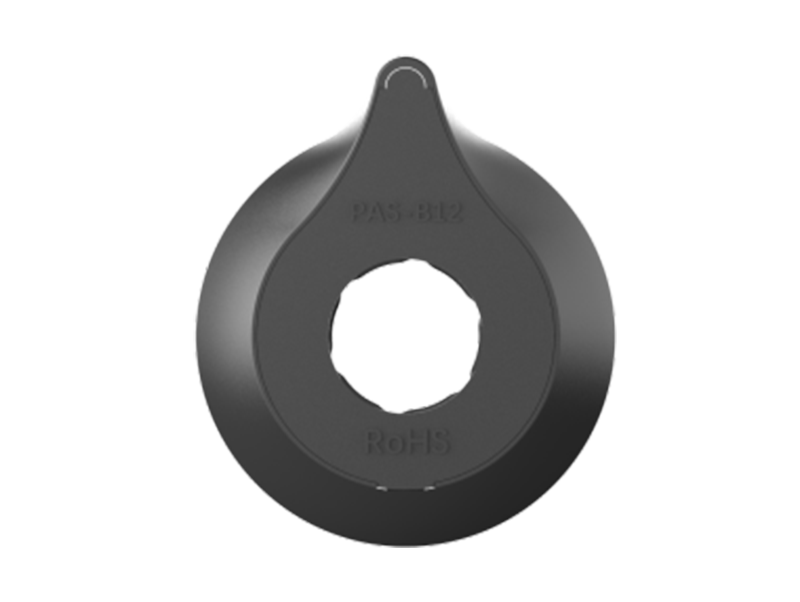

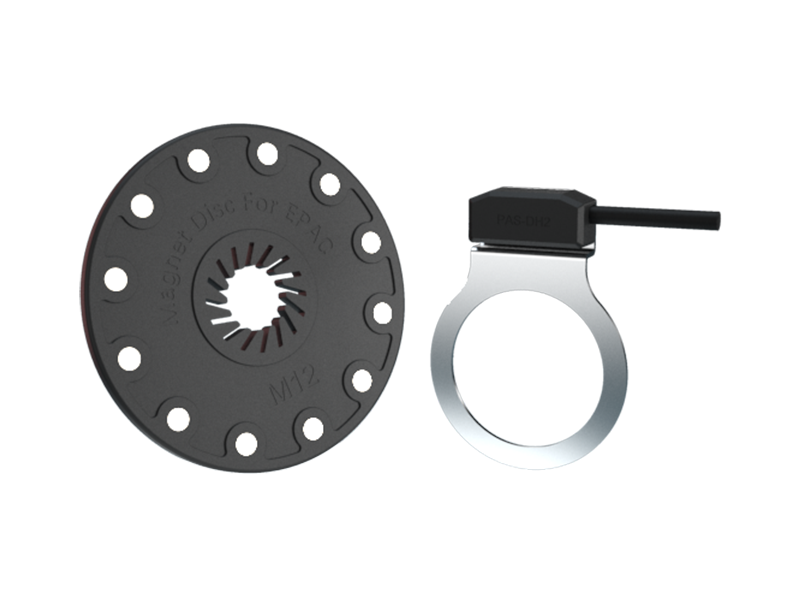

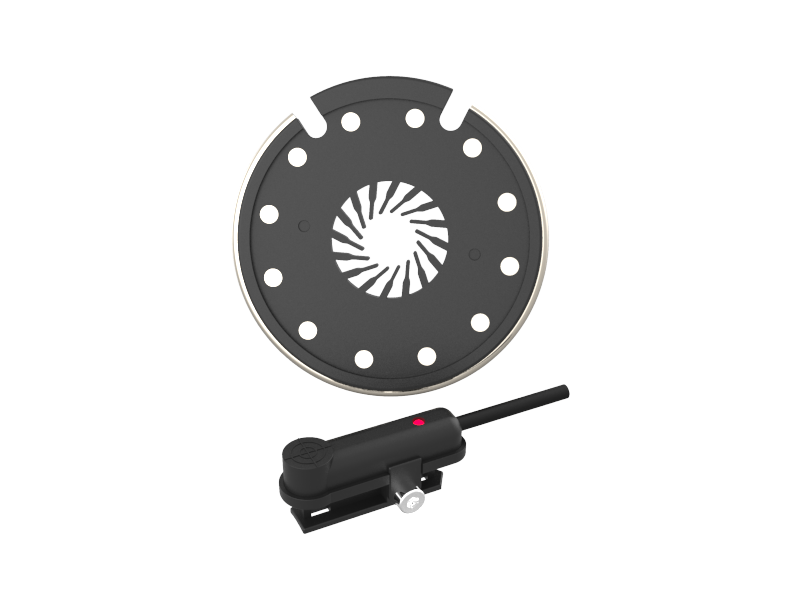

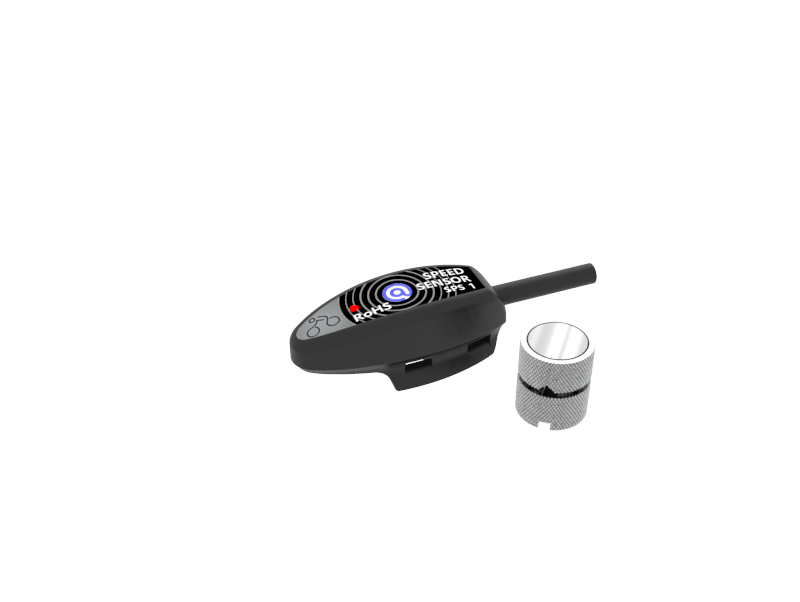

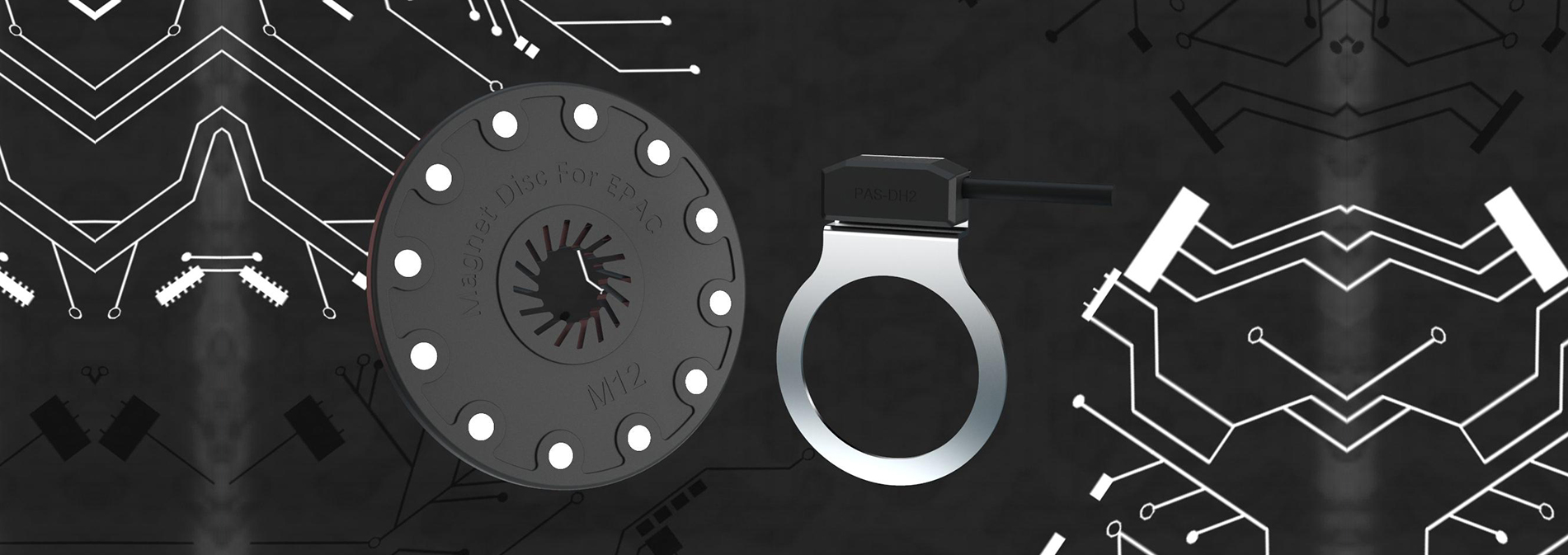

PAS sensor and Speed sensor

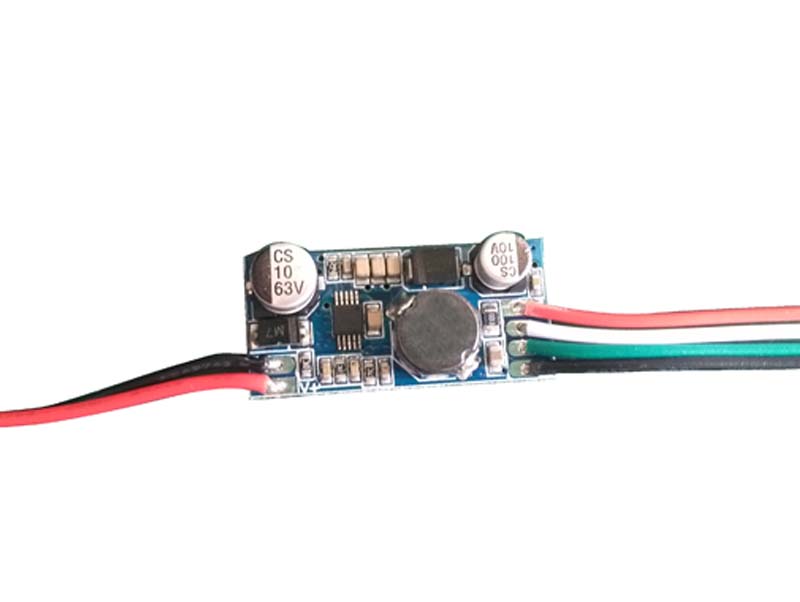

eBike 6V LED Lights Power Module

Lithium Battery

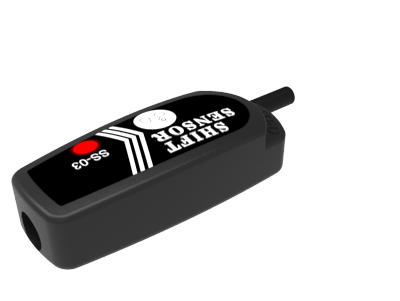

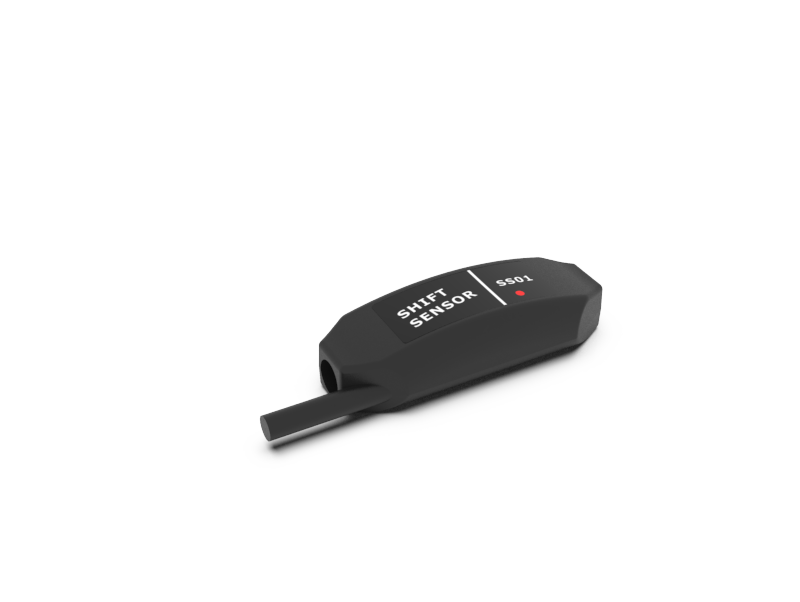

Shift Sensor for eBike

This is a sensor patented by Mishine which can detect the action when rider shifted the gear on bike, a signal will be generated immediately  and cut the power during  gear shifting  process. It can help rider to avoid some problems like   chain  or derailleur damaged also can bring some smooth shifting feeling to rider,it can widely be used for    middle motor drive system ;

这是一款专利换档自行车传感器,可以灵敏检测换档信号,在换档时,电动自行车依据此信号切断驱动电源,从而保护链条和变速机构,避免损坏,同时给骑行着带来平顺的换档感受,此传感器可以广泛应用于中置电机驱动系统



 Specification


 Operating voltage                   工作电压  4-5.5 VDC
 Current consumption                消耗电流  15ma
 Signal Output                        信号输出  Pulse duration 0.5s  信号保持0.5秒,支持定制
 Protection circuit                     电源保护  Short Circuit & Polarity Reversed Protection,电源反接保护
 Housing material                     材料  Intensive ABS
 Protection                           保护等级  IP67
 Operating temp/hum                工作温度  -2 5 ~ +70 ; 35% 85 % RH
 Size(L*W*H)                          尺寸  47mm * 18mm * 12mm

 Install

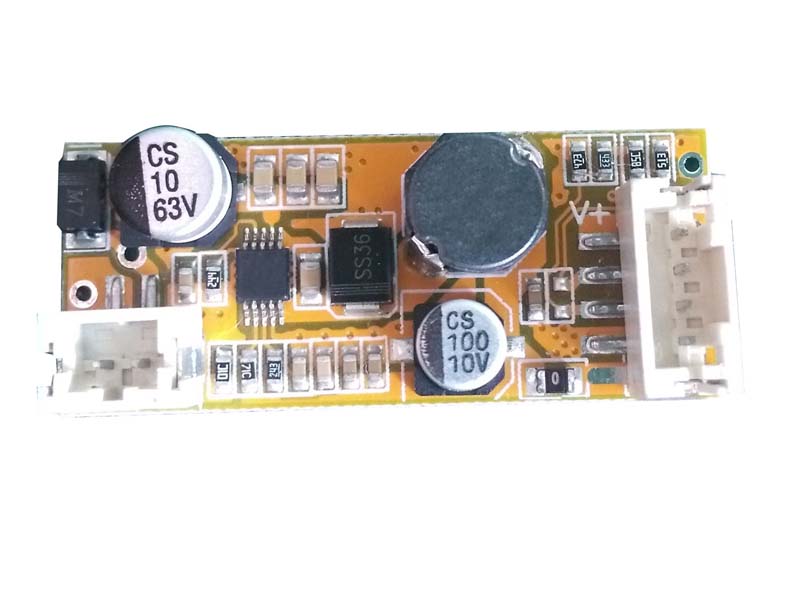

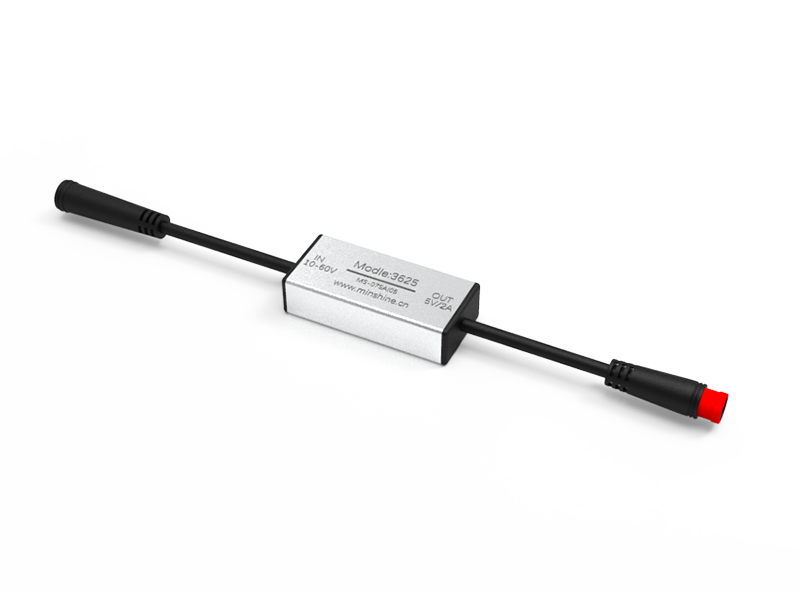

Mobile Charger

     MC series module is a newest product for mobile phone charging ,it can be packed into the battery case or controller, also can work with external mode after combined it with special case (see MS-02S ) .The main features of  this module is can widely suit all the Intelligent mobile such as Apple or Samsung mobile and others which made in china. This module has multiple protect function to ensure charging safely , also can self recovery after back to work condition .

Function and Features
 Overload protection:Auto Limited when output current increase more than 1200mA;
 Short circuit protecion:ensure safety for mobile and module;
 Overheating  protection:ensure safety for battery;
 Self recovery function:self recovery after back to work condition;
 Widely flexible:suit all the Intelligent mobile such as Apple or Samsung mobile and others which made in china
 Customer made is avalible;

Technical sheet
Input:                              7~60VDC
Output: 5VDC±0.25
Max Output Current:   1000mA                                                  Resistance < 0.2Ω
efficiency:                    >90%                                                     Temp arrange -20℃~+60℃
Overload protection : >1200mA                                              Overheating:  >150℃
Suitability :                    Apple and Samsung and china mobile












Products Poll

Which product are you more interested in?

E-Bike Kit

Torque Sensor

Controller

Meter

Battery

Vote Result

How to order our products
By now we don't have any sale office or reseller around the world but the Mainland of China. If you want to buy our products, you can order directly from us by email or fax. Your inqury will be welcomed and quickly responsd.
How to be our agent or distributor
At Present we have no sale office in all other countries and regions around the world but the Maindland of China. If you are interested in our products and want to act as the agent or distributor of our products, please don't hesitate to contact us by email or fax, your request will be carefully considered.
About us

We are an manufacturer specialized in the development and manufacturing of high end solutions for E-Bike market.. Our main products include torque sensor of which we have patent, controller, LCD and LED meters, speed sensor. Our products have good quality, reasonable price, leading technology and are widely welcomed for years.

Based on the business spirit of " surive by quality and develop by service", we sincerely welcom both of new and old customers to work together to open the bright future
